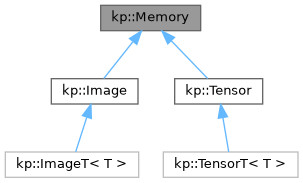

Inheritance diagram for kp::Memory:

[legend]

Public Types
enum class	MemoryTypes { eDevice = 0 , eHost = 1 , eStorage = 2 , eDeviceAndHost }

enum class	DataTypes { eBool = 0 , eInt = 1 , eUnsignedInt = 2 , eFloat = 3 , eDouble = 4 , eCustom = 5 , eShort = 6 , eUnsignedShort = 7 , eChar = 8 , eUnsignedChar = 9 }

enum class	Type { eTensor = 0 , eImage = 1 }

Public Member Functions
	Memory (std::shared_ptr< vk::PhysicalDevice > physicalDevice, std::shared_ptr< vk::Device > device, const DataTypes &dataType, const MemoryTypes &memoryType, uint32_t x, uint32_t y)

	Memory (const Memory &)=delete
	Make Memory uncopyable.

	Memory (const Memory &&)=delete

Memory &	operator= (const Memory &)=delete

Memory &	operator= (const Memory &&)=delete

virtual	~Memory ()

virtual void	destroy ()

MemoryTypes	memoryType ()

DataTypes	dataType ()

virtual bool	isInit ()=0

virtual void	recordCopyFromStagingToDevice (const vk::CommandBuffer &commandBuffer)=0

virtual void	recordCopyFromDeviceToStaging (const vk::CommandBuffer &commandBuffer)=0

virtual void	recordPrimaryMemoryBarrier (const vk::CommandBuffer &commandBuffer, vk::AccessFlagBits srcAccessMask, vk::AccessFlagBits dstAccessMask, vk::PipelineStageFlagBits srcStageMask, vk::PipelineStageFlagBits dstStageMask)=0

virtual void	recordStagingMemoryBarrier (const vk::CommandBuffer &commandBuffer, vk::AccessFlagBits srcAccessMask, vk::AccessFlagBits dstAccessMask, vk::PipelineStageFlagBits srcStageMask, vk::PipelineStageFlagBits dstStageMask)=0

void	recordCopyFrom (const vk::CommandBuffer &commandBuffer, std::shared_ptr< Memory > copyFromMemory)

virtual vk::WriteDescriptorSet	constructDescriptorSet (vk::DescriptorSet descriptorSet, uint32_t binding)=0

uint32_t	size ()

uint32_t	dataTypeMemorySize ()

uint32_t	memorySize ()

vk::DescriptorType	getDescriptorType ()

void *	rawData ()

void	setData (const void *data, size_t size)

template<typename T >
void	setData (const std::vector< T > &data)

template<typename T >
T *	data ()

template<typename T >
std::vector< T >	vector ()

uint32_t	getX ()

uint32_t	getY ()

virtual Type	type ()=0

Static Public Member Functions
static std::string	toString (MemoryTypes dt)

static std::string	toString (DataTypes dt)

template<typename T >
static constexpr DataTypes	dataType ()

static uint32_t	dataTypeMemorySize (DataTypes dataType)

template<>
constexpr Memory::DataTypes	dataType ()

template<>
constexpr Memory::DataTypes	dataType ()

template<>
constexpr Memory::DataTypes	dataType ()

template<>
constexpr Memory::DataTypes	dataType ()

template<>
constexpr Memory::DataTypes	dataType ()

template<>
constexpr Memory::DataTypes	dataType ()

template<>
constexpr Memory::DataTypes	dataType ()

template<>
constexpr Memory::DataTypes	dataType ()

template<>
constexpr Memory::DataTypes	dataType ()

Protected Member Functions
void	mapRawData ()

void	unmapRawData ()

void	updateRawData (void *data)

vk::MemoryPropertyFlags	getPrimaryMemoryPropertyFlags ()

vk::MemoryPropertyFlags	getStagingMemoryPropertyFlags ()

virtual void	recordCopyFrom (const vk::CommandBuffer &commandBuffer, std::shared_ptr< Tensor > copyFromMemory)=0

virtual void	recordCopyFrom (const vk::CommandBuffer &commandBuffer, std::shared_ptr< Image > copyFromMemory)=0

Protected Attributes
MemoryTypes	mMemoryType

DataTypes	mDataType

uint32_t	mSize

uint32_t	mDataTypeMemorySize

void *	mRawData = nullptr

vk::DescriptorType	mDescriptorType

bool	mUnmapMemory = false

uint32_t	mX

uint32_t	mY

std::shared_ptr< vk::PhysicalDevice >	mPhysicalDevice

std::shared_ptr< vk::Device >	mDevice

std::shared_ptr< vk::DeviceMemory >	mPrimaryMemory

bool	mFreePrimaryMemory = false

std::shared_ptr< vk::DeviceMemory >	mStagingMemory

bool	mFreeStagingMemory = false

Member Enumeration Documentation

◆ MemoryTypes

enum class kp::Memory::MemoryTypes

strong

Type for memory created: Device allows memory to be transferred from staging memory. Staging are host memory visible. Storage are device visible but are not set up to transfer or receive data (only for shader storage).

Enumerator
eDevice	Type is device memory, source and destination.
eHost	Type is host memory, source and destination.
eStorage	Type is Device memory (only)
eDeviceAndHost	Type is host-visible and host-coherent device memory.

Constructor & Destructor Documentation

◆ ~Memory()

virtual kp::Memory::~Memory ( )

inlinevirtual

Destructor which is in charge of freeing vulkan resources unless they have been provided externally.

Member Function Documentation

◆ constructDescriptorSet()

virtual vk::WriteDescriptorSet kp::Memory::constructDescriptorSet	(	vk::DescriptorSet	descriptorSet,
		uint32_t	binding
	)

pure virtual

Adds this object to a Vulkan descriptor set at binding.

Parameters

descriptorSet	The descriptor set to add to.
binding	The binding number to use.

Returns: Add this object to a descriptor set at binding.

Implemented in kp::Image, and kp::Tensor.

◆ data()

template<typename T >

T * kp::Memory::data ( )

inline

Template to return the pointer data converted by specific type, which would be any of the supported types including float, double, int32, uint32 and bool.

Returns: Pointer to raw memory containing raw bytes data of Tensor/Image.

◆ dataType() [1/2]

template<typename T >

static constexpr DataTypes kp::Memory::dataType ( )

staticconstexpr

Retrieve the data type for T

Returns: Data type of T of type kp::Memory::DataTypes

◆ dataType() [2/2]

DataTypes kp::Memory::dataType ( )

Retrieve the data type of the tensor (int, float, unsigned short etc.)

Returns: Data type of memory of type kp::Memory::DataTypes

◆ dataTypeMemorySize() [1/2]

uint32_t kp::Memory::dataTypeMemorySize ( )

Returns the total size of a single element of the respective data type that this memory object holds.

Returns: Unsigned integer representing the memory of a single element of the respective data type.

◆ dataTypeMemorySize() [2/2]

static uint32_t kp::Memory::dataTypeMemorySize ( DataTypes dataType )

static

Returns the total size of a single element of the respective data type

Returns: Unsigned integer representing the memory of a single element of the respective data type.

◆ destroy()

virtual void kp::Memory::destroy ( )

virtual

Destroys and frees the GPU resources which includes the memory.

Reimplemented in kp::Image, and kp::Tensor.

◆ isInit()

virtual bool kp::Memory::isInit ( )

pure virtual

Check whether memory object is initialized based on the created gpu resources.

Returns: Boolean stating whether memory object is initialized

Implemented in kp::Image, and kp::Tensor.

◆ memorySize()

uint32_t kp::Memory::memorySize ( )

Returns the total memory size of the data contained by the memory object which would equate to (this->size() * this->dataTypeMemorySize())

Returns: Unsigned integer representing the total memory size of the data contained by the image object.

◆ memoryType()

MemoryTypes kp::Memory::memoryType ( )

Retrieve the memory type of the memory

Returns: memory type of memory

◆ rawData()

void * kp::Memory::rawData ( )

Retrieve the raw data via the pointer to the memory that contains the raw memory of this current tensor. This tensor gets changed to a nullptr when the Tensor is removed.

Returns: Pointer to raw memory containing raw bytes data of Tensor/Image.

◆ recordCopyFrom() [1/3]

virtual void kp::Memory::recordCopyFrom	(	const vk::CommandBuffer &	commandBuffer,
		std::shared_ptr< Image >	copyFromMemory
	)

protectedpure virtual

Implemented in kp::Image, and kp::Tensor.

◆ recordCopyFrom() [2/3]

void kp::Memory::recordCopyFrom	(	const vk::CommandBuffer &	commandBuffer,
		std::shared_ptr< Memory >	copyFromMemory
	)

Records a copy from the memory provided to the current memory. This is intended to pass memory into a processing, to perform a staging image transfer, or to gather output (between others).

Parameters

commandBuffer	Vulkan Command Buffer to record the commands into
copyFromMemory	Memory to copy the data from

◆ recordCopyFrom() [3/3]

virtual void kp::Memory::recordCopyFrom	(	const vk::CommandBuffer &	commandBuffer,
		std::shared_ptr< Tensor >	copyFromMemory
	)

protectedpure virtual

Implemented in kp::Image, and kp::Tensor.

◆ recordCopyFromDeviceToStaging()

virtual void kp::Memory::recordCopyFromDeviceToStaging ( const vk::CommandBuffer & commandBuffer )

pure virtual

Records a copy from the internal device memory to the staging memory using an optional barrier to wait for the operation. This function would only be relevant for kp::Tensors of type eDevice.

Parameters

commandBuffer Vulkan Command Buffer to record the commands into

Implemented in kp::Image, and kp::Tensor.

◆ recordCopyFromStagingToDevice()

virtual void kp::Memory::recordCopyFromStagingToDevice ( const vk::CommandBuffer & commandBuffer )

pure virtual

Records a copy from the internal staging memory to the device memory using an optional barrier to wait for the operation. This function would only be relevant for kp::Tensors of type eDevice.

Parameters

commandBuffer Vulkan Command Buffer to record the commands into

Implemented in kp::Image, and kp::Tensor.

◆ recordPrimaryMemoryBarrier()

virtual void kp::Memory::recordPrimaryMemoryBarrier	(	const vk::CommandBuffer &	commandBuffer,
		vk::AccessFlagBits	srcAccessMask,
		vk::AccessFlagBits	dstAccessMask,
		vk::PipelineStageFlagBits	srcStageMask,
		vk::PipelineStageFlagBits	dstStageMask
	)

pure virtual

Records the buffer memory barrier into the primary buffer and command buffer which ensures that relevant data transfers are carried out correctly.

Parameters

commandBuffer	Vulkan Command Buffer to record the commands into
srcAccessMask	Access flags for source access mask
dstAccessMask	Access flags for destination access mask
scrStageMask	Pipeline stage flags for source stage mask
dstStageMask	Pipeline stage flags for destination stage mask

Implemented in kp::Image, and kp::Tensor.

◆ recordStagingMemoryBarrier()

virtual void kp::Memory::recordStagingMemoryBarrier	(	const vk::CommandBuffer &	commandBuffer,
		vk::AccessFlagBits	srcAccessMask,
		vk::AccessFlagBits	dstAccessMask,
		vk::PipelineStageFlagBits	srcStageMask,
		vk::PipelineStageFlagBits	dstStageMask
	)

pure virtual

Records the buffer memory barrier into the staging buffer and command buffer which ensures that relevant data transfers are carried out correctly.

Parameters

commandBuffer	Vulkan Command Buffer to record the commands into
srcAccessMask	Access flags for source access mask
dstAccessMask	Access flags for destination access mask
scrStageMask	Pipeline stage flags for source stage mask
dstStageMask	Pipeline stage flags for destination stage mask

Implemented in kp::Image, and kp::Tensor.

◆ setData() [1/2]

template<typename T >

void kp::Memory::setData ( const std::vector< T > & data )

inline

Sets / resets the data of the tensor/image which is directly done on the GPU host visible memory available by the tensor/image.

◆ setData() [2/2]

void kp::Memory::setData	(	const void *	data,
		size_t	size
	)

Sets / resets the data of the tensor/image which is directly done on the GPU host visible memory available by the tensor/image.

◆ size()

uint32_t kp::Memory::size ( )

Returns the size/magnitude of the Tensor/Image, which will be the total number of elements across all dimensions

Returns: Unsigned integer representing the total number of elements

◆ type()

virtual Type kp::Memory::type ( )

pure virtual

Return the object type of this Memory object.

Returns: The object type of the Memory object.

Implemented in kp::Image, and kp::Tensor.

◆ vector()

template<typename T >

std::vector< T > kp::Memory::vector ( )

inline

Template to get the data of the current tensor/image as a vector of specific type, which would be any of the supported types including float, double, int32, uint32 and bool.

Returns: Vector of type provided by template.

The documentation for this class was generated from the following file:

/home/me/development/kompute/src/include/kompute/Memory.hpp
